Powerful, Efficient and Reliable BLDC Motors
We are leading manufacturer of general-purpose brushless dc (BLDC) motors with power range from 200W to 20KW, and the voltage range from 24V to 120V DC. It has been widely used for many applications, eg., auto industry, battery powered bikes, scooters, electric cars, forklifts, golf buggies, boats etc. It has better performances than other traditional dc motors.
The Specifications of Our BLDC Motor Kit:
1. Voltages: 48/72V/96v/120v
2. Rated power: 3kW-7.5kW
3. Peak power: 10kW
4. Speed: 3000-5000rpm
5. Rated torque: 13Nm
6. Peak torque: 45 Nm
7. Efficiency: >90%
8. Dimensions: 21cm diameter, 18cm height
9. Weight: 11Kg(Air),11.35kg(Liquid )
10. Cooling: Air or Liquid Cooling
| 1. | Voltage | 48V/72V/96V/120V |
| 2. | Rated Power | 3kW-7.5kW |
| 3. | Peak Power | 10kW |
| 4. | Speed | 3000-5000rpm |
| 5. | Rated torque | 13Nm |
| 6. | Peak torque | 45Nm |
| 7. | Efficiency | >90% |
| 8. | Dimensions | 21cm diameter, 18cm height |
| 9. | Weight | 11Kg(Air),11.35kg(Liquid ) |
| 10. | Cooling | Air or Liquid Cooling |

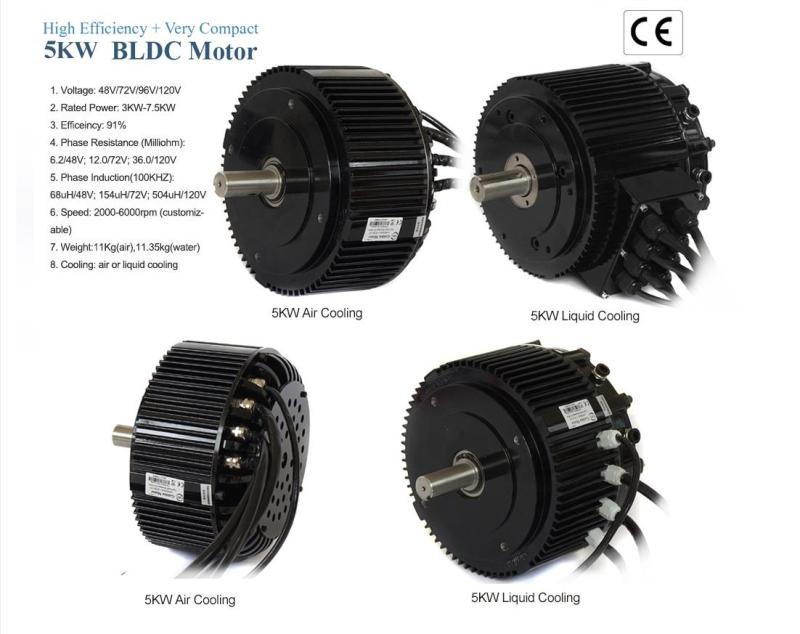

Pictures of the 3KW -20KW BLDC Motor
